Events Monitoring

Overview

On top of our logging and metrics, Magma has a metrics monitoring system. Events capture rich, searchable data pertaining to the gateways, and entities tracked by the gateways. Events are a work in progress, but has been designed to track the following:

• S1AP message tracing
• Subscriber session tracing
• Subscriber data usage, bearer creation
• Gateway connection status
• eNodeB tracing
• New gateway configurations pushed

If Fluentd, Fluent Bit, and Elasticsearch have been correctly configured on your setup, events should automatically be available.

Viewing Events

We recommend two primary ways to view or query for events: either through our NMS UI, or through our REST API.

NMS

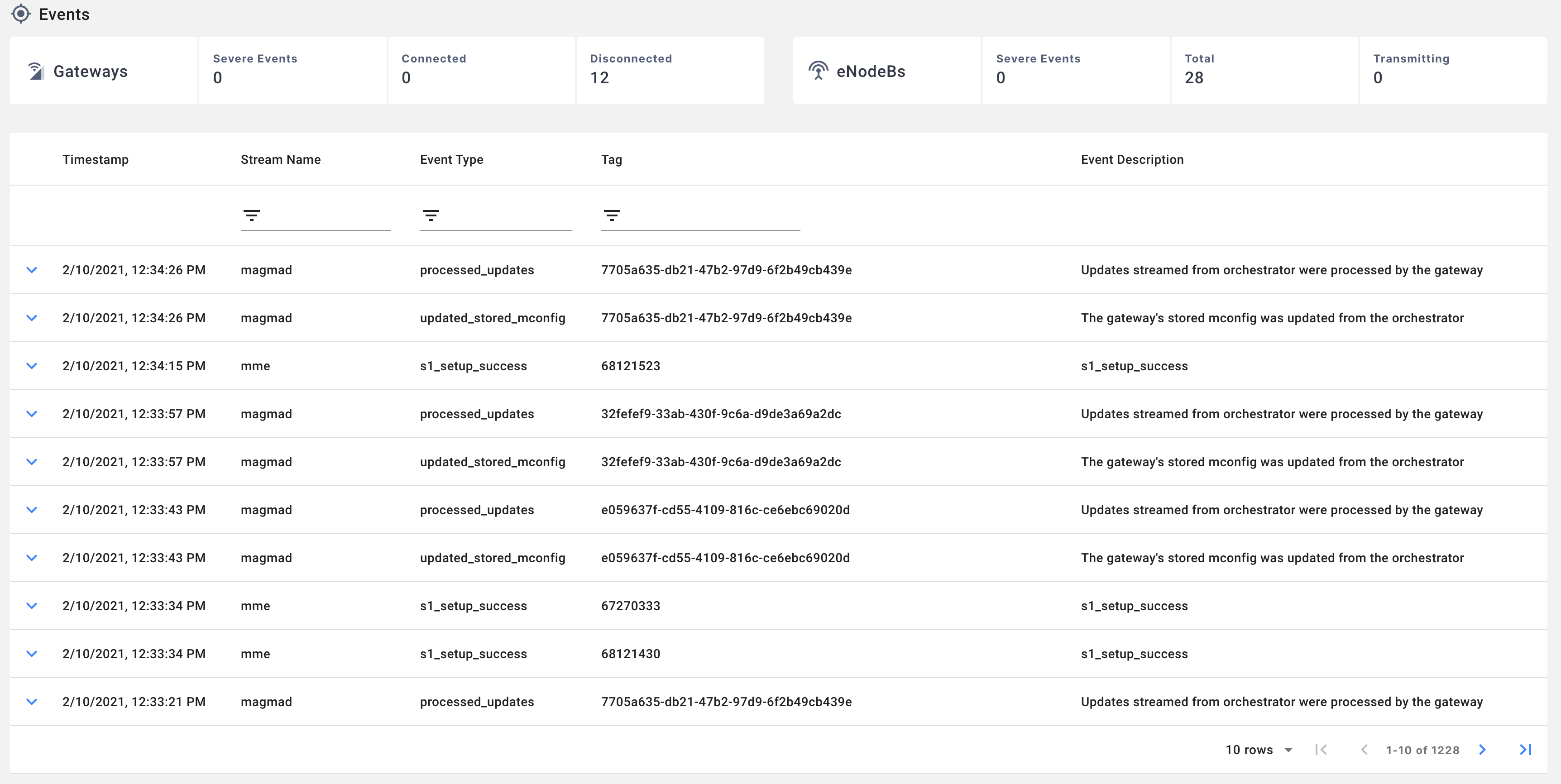

The easiest way to view Magma's events is through the NMS UI. Events can be seen on the main network dashboard. Gateway and subscriber specific events tables are also provided.

REST API

We provide a REST API for querying events. The Magma NMS itself uses this API to provide its interface. We use OpenAPI, so more details can be found in our various Swagger files.

• swagger.yml
• swagger.v1.yml

Currently we provide three GET endpoints for our REST API:

/events/{network_id}:
/events/{network_id}/{stream_name}:
/events/{network_id}/about/count:

Event Streams

Events are divided into the following streams, that can be filtered on either the NMS or the REST API

(This may not be an exhaustive list)

• magmad: Events related to general access gateway function
• health Events related to federation gateway health
• sessions: Events related to subscriber sessions
• mme Events related to MME function, S1 issues, and subscriber attach/detach

Available Events

Events are defined in swagger yaml files. This list may not be exhaustive.

Access Gateway Events

magmad_events.v1.yml

deleted_stored_mconfig: The stored mconfig was deleted

updated_stored_mconfig: The stored mconfig was updated

processed_updates: Stream updates were successfully processed

Properties
- updates (new mconfig received)

restarted_services: Services were restarted

Properties
- services

established_sync_rpc_stream: SyncRPC connection was established

disconnected_sync_rpc_stream: SyncRPC stream was disconnected

Federation Gateway Events

health_events.v1.yml

gateway_promotion_succeeded: Gateway successfully promoted to active

gateway_promotion_failed: Gateway promotion to active failed

Properties
- failure reason

gateway_demotion_succeded: Gateway successfully demoted to standby

gateway_demotion_failed: Gateway demotion to standby failed

Properties
- failure reason

AAA Events

aaa_server_events.v1.yml

authentication_succeeded: Used to track successful subscriber authentications

Properties
- IMSI
- session ID
- MAC address
- APN

authentication_failed: Used to track failed subscriber authentications

Properties
- IMSI
- MAC address
- APN
- failure reason

session_termination_succeeded: Used to track AAA server produced session terminations

Properties
- IMSI
- session ID
- MAC address
- APN
- reason for termination

session_termination_failed: Used to track AAA server produced session termination failures

Properties
- IMSI
- session ID
- MAC address
- APN
- reason for termination
- failure reason

Subscriber Events

session_manager_events.v1.yml

mme_events.v1.yml

session_created: Used to track when a session was created

Properties
- imsi:
- ip_addr:
- msisdn:
- imei:
- spgw_ip:
- session_id:
- apn:
- mac_addr:
- pdp_start_time:

session_create_failure: Used to track when a session creation failed

Properties
- imsi:
- apn:
- mac_addr:
- failure_reason:

session_updated: Used to track when a session update is reported

Properties
- imsi:
- apn:
- mac_addr:
- ip_addr:

session_update_failure: Used to track when a session update has failed

Properties
- imsi:
- apn:
- mac_addr:
- ip_addr:
- failure_reason:

session_terminated: Used to track total session metrics

Properties
- imsi:
- apn:
- mac_addr:
- ip_addr:
- msisdn:
- imei:
- spgw_ip:
- session_id:
- total_tx:
- total_rx:
- charging_tx:
- charging_rx:
- monitoring_tx:
- monitoring_rx:
- pdp_start_time:
- pdp_end_time:

attach_success: Used to track when UE attaches successfully

Properties
- imsi:

detach_success: Used to track when UE detaches successfully

Properties
- imsi:
- action:

s1_setup_success: Used to track establishment of S1 connection

Properties
- enb_name:
- enb_id:

How-to: Create an event

View under our 'Eventd' doc.
